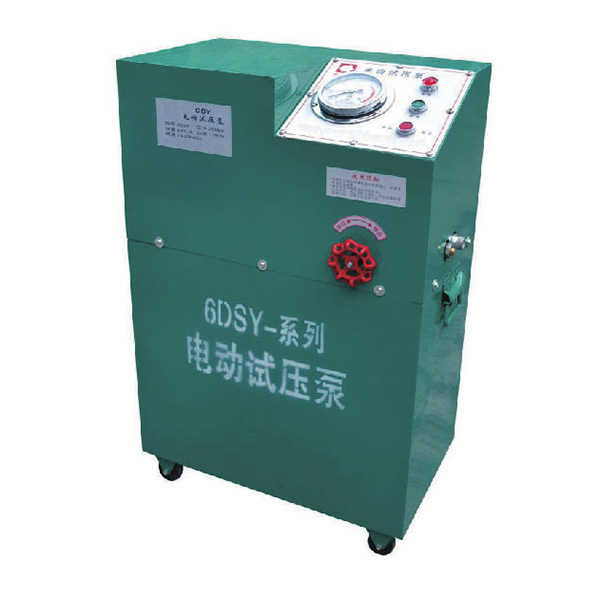

産品特點 Product features
DSY系列電動試壓泵具有良好的操作測試性能,該産品攜帶方便,輸出穩定,外形美觀,是管道施工的理想設備。
DSY series of electric hydraulic test pumps are capable of favorable property of operation tests, featuring portability, reliable output and attractive appearance. Under the circumstances, they are ideal for pipeline construction.
技術參數 Technical parameters
型号 Model | 壓力 Pressure | 電壓 Voltage | 功率 Power | 流量 Flow volume (L/H) | 毛重 G.W. (Kg) | 尺寸 Meas (mm) | |
高壓 High Pressure | 低壓 Low Pressure | ||||||
6DSY- 25 | 0-2.5MPa | 220/380V | 0.75KW | 108 | 480 | 50KG | 540*350*760 |
6DSY- 40 | 0-4.0MPa | 220/380V | 0.75KW | 108 | 480 | 50KG | 540*350*760 |
6DSY- 60 | 0-6.0MPa | 220/380V | 0.75KW | 108 | 480 | 50KG | 540*350*760 |
6DSY- 100 | 0-10MPa | 220/380V | 0.75KW | 108 | 480 | 50KG | 540*350*760 |
6DSY- 160 | 0-16MPa | 380V | 1.1KW | 108 | 480 | 50KG | 540*350*760 |
6DSY- 250 | 0-25MPa | 380V | 1.5KW | 90 | 480 | 50KG | 540*350*760 |
6DSY- 400 | 0-40MPa | 380V | 1.5KW | 90 | 480 | 50KG | 540*350*760 |
